• ID Card Reader
  • Model: AA-GST-ID
  • The EST-100GS is plug-and-play, supports multiple development platforms, and is the industry’s first to seamlessly integrate with the latest versions of Google Chrome and Mozilla Firefox web browsers.
  • Features
  • Offline readable, no internet connection required
  • Supports reading of ID card information, IC cards, CPU cards, M1 cards, electronic tags, and other types of cards. It also supports common cards such as bank cards, medical cards, health cards, access cards, and membership cards.
  • Plug-and-play installation
  • Features self-developed RF module with good electromagnetic compatibility. Even in unstable reading environments, it maintains relatively stable card reading.
  • Compact product size, saving desktop space
  • Highly open, providing dynamic library interfaces and usage instructions, supporting secondary development
Device Details
  • Model: AA-GST-ID

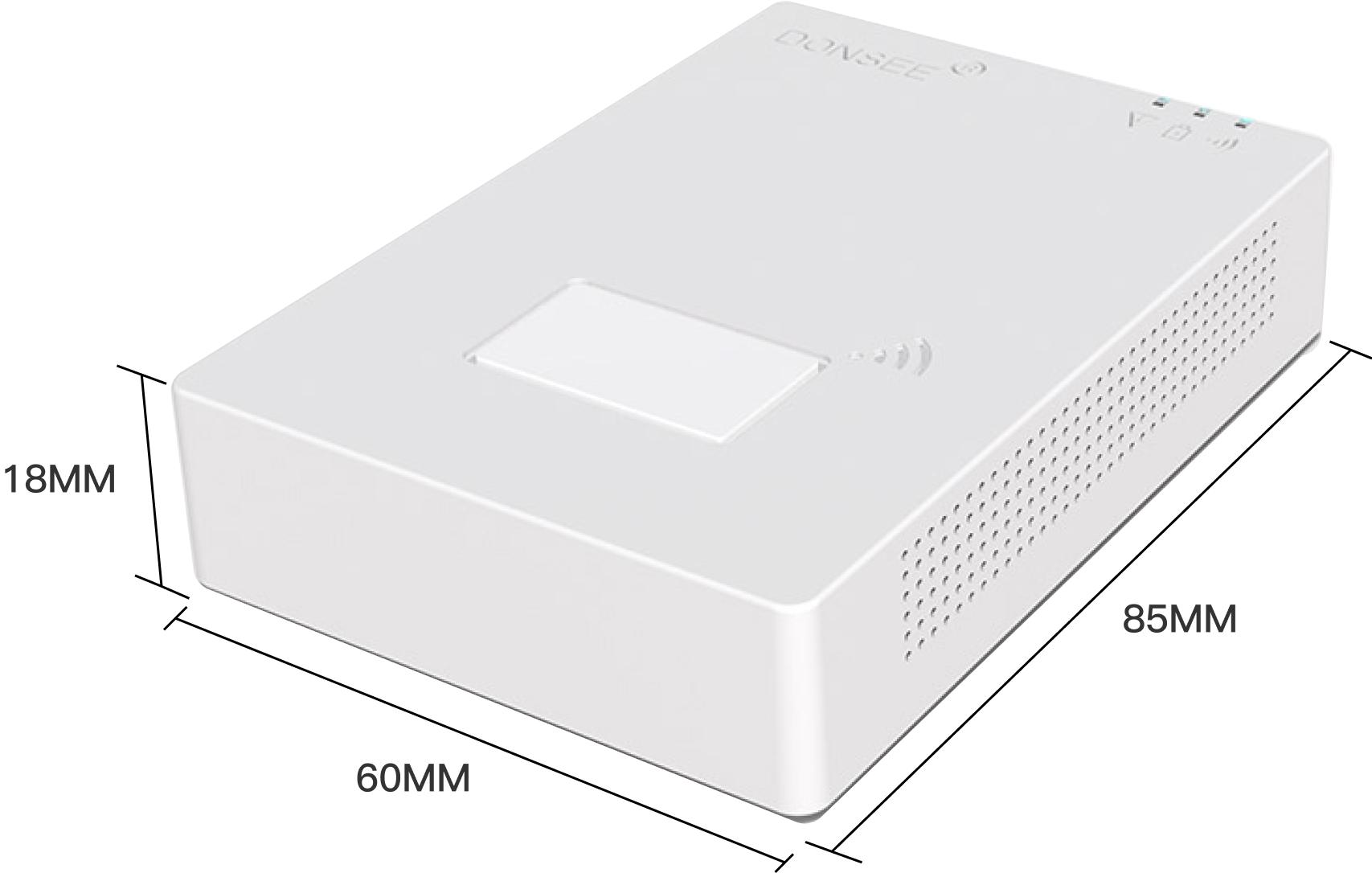

  • Dimensions: 608518 mm
  • Weight: <200g
  • Operating Power: DC 5V±5%
  • Main Processor: 32-bit ARM processor, frequency 72MHz
  • Communication Interface: USB Type C, optionally supports RS232/TTL serial port
  • Supported Card Types: ID card, Mifare S50 card, Mifare S70 card, CPU card, 15693 electronic tag
  • Antenna Energy Output: Antenna surface electromagnetic strength (Hmax) ≤7.5A/m rms;
  • Antenna surface normal direction maximum reading distance electromagnetic strength (Hmax≥1.5A/m rms)
  • Confidential Module: Built-in Ministry of Public Security dedicated identity verification small module, with 2 built-in PSam card slots
  • Reading Time: 0~800 ms
  • Reading Distance: 0~5 cm
  • Operating Frequency: 13.56MHz ±7KHz
  • Indicator Lights: Three LED indicator lights on the front accurately display the reader’s operational status
  • Buzzer: Built-in buzzer provides intuitive card reading status feedback
  • Operating Temperature: 0℃~50℃
  • Operating Systems: Supports Windows XP/7/8/10, Android, Linux, Unix, microcontrollers, etc.
  • Development Kits: API supports C#, C++, C, Delphi, Java, VC, VB, PB, Python, etc., and supports development with the latest versions of Google Chrome, Mozilla Firefox, 360 Extreme, IE, etc.
