- Meeting Booking Screen
- Model: AA-WDTP_1002

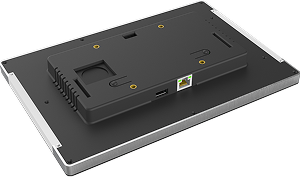

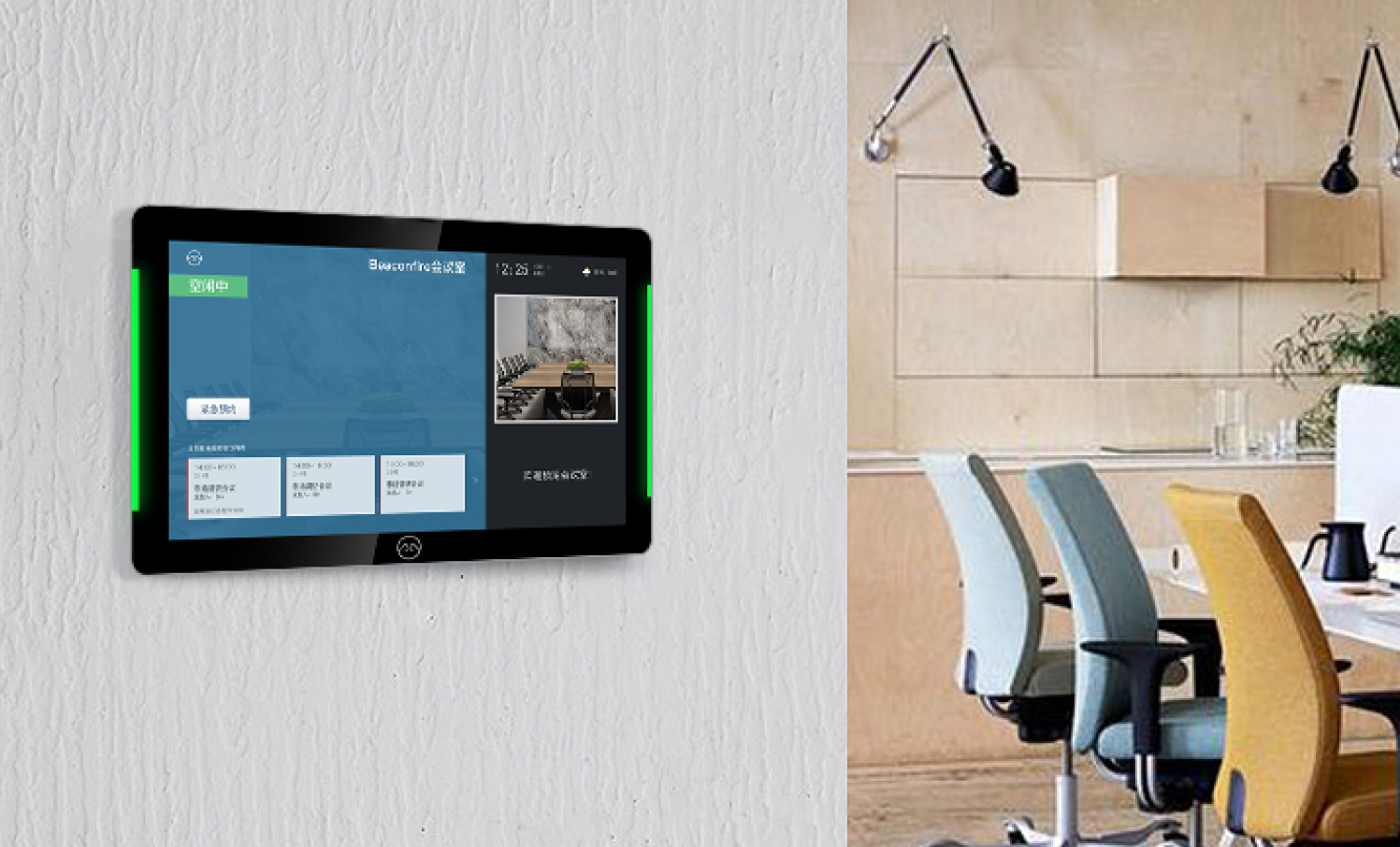

- This is a high-definition multi-touch color display with an easy-to-install responsive touch screen. It can be powered by a single cable via PoE. It features two LED strips on the sides. With built-in lights, sensors, and cameras, it is used for check-in and displaying the current status of the meeting room.
- Features
- Available in Piano White and Metallic Black
- High Resolution
- Built-in Speakers
- People can obtain information on available workspace from a distance
- The screen can sleep to save power while still using low-power indicator lights to show room availability
- Built-in camera for tracking attendance, facial recognition check-in, etc.
- Direct panel sensing
- Status lights that instantly reflect the meeting room reservation status (red, yellow, green)
- Proximity sensing
Device Details
Touch Screen Size
7 inches
- Dimensions (mm): 18212130
- Weight: 700g
- Camera: HD Camera
10.1 inches
- Dimensions (mm): 25117130
- Weight: 700g
- Camera: HD Camera
- Resolution: 1280800
- CPU: A7 Octa-core
- Memory: DDRII 2GB
- Storage: EMMC 8GB
- USB: USB 2.02, TYPE-C1
- Speaker: 8Ω, 3W
- Microphone: -38±3db
- Power: PoE 802.AF
- Network: 10/100M
- Color: Black, White
- Status LED Strip: Red, Green, Yellow
- Sensors: Built-in ambient light sensor, proximity sensor
- Operating Temperature: 0℃~40℃
