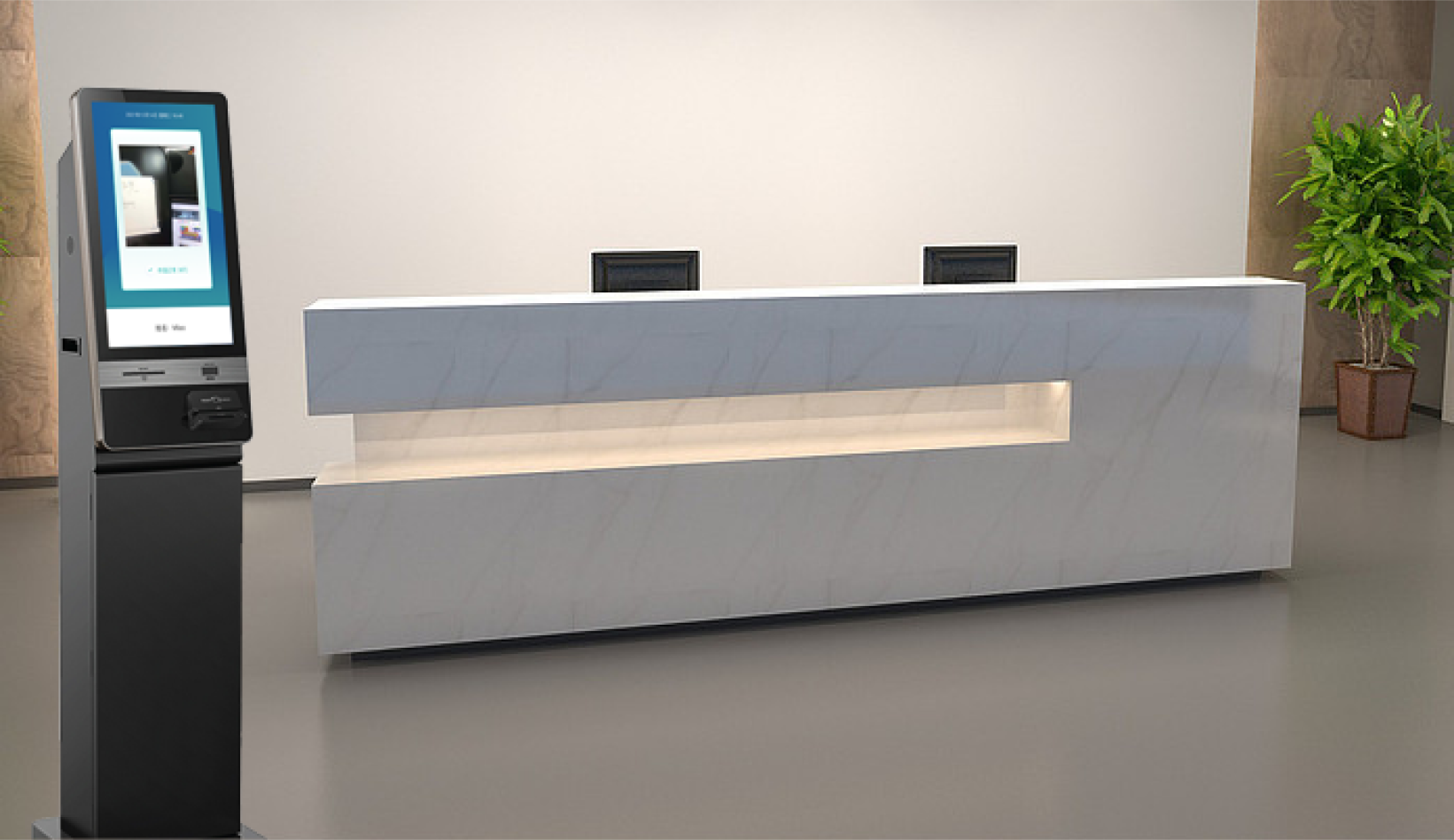

• Self-Service Visitor Kiosk
  • Model: AA-GST-RSMLCS
  • This device generates access codes by verifying the reservation codes of incoming personnel, widely used for visitor registration management in parks, office buildings, enterprises, and other workplaces.
  • Features
  • Supports identification of ID cards, IC cards, with card reading time <1.5s
  • Provides QR code scanner induction reading
  • Scanner prompt method: Beeper
  • High-definition photography
  • Camera supports CMOS sensor
  • Thermal printing
Device Details
  • Color: White
  • Light Strip: Blue
  • Power: Multi-route power 12V
  • Speaker: 8Ω 5W
  • Operating Temperature: -30℃ to +75℃
  • Installation Method: Pillar-mounted
  • Operating System: Windows 10 64-bit
  • Processor: I5 4440
  • Memory: 8GB DDR4 2400
  • Storage: SATA2 240GB
  • Power Consumption: <30mA
  • Display Screen: 23.6-inch capacitive screen
  • Resolution: 4096×4096
Camera
  • CMOS image sensor
  • 110DB super wide dynamic range HDR 1080P
  • 1/2.7" 8-megapixel high-definition image sensor
  • Auto focus, auto exposure, custom white balance
  • Maximum frame rate 30FPS
QR Code Scanner
  • 10mil reading accuracy
  • White LED light source
  • RS-232 interface
  • Maximum power consumption 1.75W
ID Card Reader
  • Card reading distance 0~50mm
  • Card reading time <1.5s
  • Working frame rate 13.26MHZ
  • Maximum angle between card surface and induction area plane 70°
  • System DC power supply DC5V500mA
  • Supports identification of IC cards and ID cards
Thermal Printer
  • Paper roll diameter 80mm
  • Automatic cutting, full cut
  • Equipped with anti-jamming device, low paper and paper-out alarm
  • Printing speed 120MM/s
